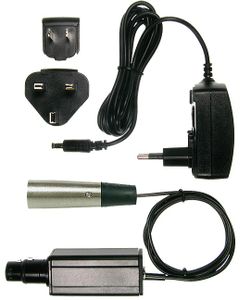

Sennheiser AES/EBU Connection Kit

Product Overview

The Connection Kits serve to supply power to digital microphones, which are in accordance with the AES42 standard. The microphone audio signal is made available at the Connection Kit output in S/PDIF or AES/EBU format, depending upon the model.

The remote control and synchronization capabilities of the AES42 standard cannot be used with the Connection Kit; they are operable only with the DMI-2 or DMI-8 digital microphone interface.

Connector: Input XLR3F, output XLR3M

Weigh: Approx. 130 g

H x W x D: 32 mm x 26 mm x 105 mm

Power supply: 90-240 V, 50/60 Hz
