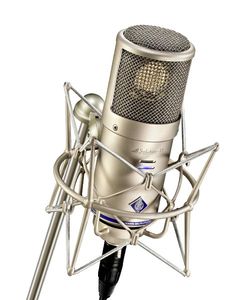

Sennheiser D-01 Digital Studio Microphone

Product Overview

Its 15 different remotely controlled directional characteristics and numerous additional features permit the D-01 to be optimally adapted to almost any recording situation. These comprehensive features demonstrate what can be achieved with digital microphone technology. The D-01 has a newly developed capsule, and is valued by users particularly for its hitherto unknown transparency and fidelity to detail.

Further information on the digital microphone technology and the whole Solution-D system can be downloaded

Extremely wide dynamic range: more than 130 dB

Neumann A/D conversion process

Pre-amps and external A/D converter are no longer necessary

Wide range of new functions through integrated digital signal processing

Control and monitoring of all microphone parameters and functions through Remote Control

Software

Digital Microphone

A/D Converter, optimized for direct conversion of the capsule signal

New capsule design

Additional DSP functions

Limiter (incl. de-esser)

All parameters and functions remote controllable

Digital Microphone Interfaces

AES 42-2001 to AES/EBU conversion

Reliable synchronization through new PLL process

2 or 8 channels

Phantom powering

Word clock in and out

Integrated word clock generator

Remote Control Software

Control and monitoring of all parameters

DSP function control

Peak level meter

Gain reduction bar graph for limiter
