Sennheiser K 3 x 0.2 Cable Material

View more by Sennheiser
Model #: K 3 x 0.2
150623
Sennheiser
$99,999.00
Call for Best Price
View Delivery & Pickup OptionsAdd Zip Code
Request More Info
At a Glance

Our cable material has been developed by Neumann and is exclusively produced for Neumann by highly qualified manufacturers. All microphone cables have a counter wound double helix copper shielding, assuring a particularly high degree of coverage (95%). HF rejection is exceptionally good, flexibility of the cable excellent. Read More

Get to know this product.

Product Overview

Product Overview

Our cable material has been developed by Neumann and is exclusively produced for Neumann by highly qualified manufacturers. All microphone cables have a counter wound double helix copper shielding, assuring a particularly high degree of coverage (95%). HF rejection is exceptionally good, flexibility of the cable excellent.

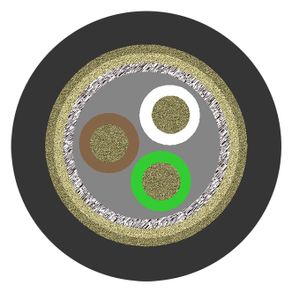

Construction

3 conductors 0.2 sqmm copper wire 102 x 0.05 mm

Insulation special thermoplastic

Shielding: 2 layers of counterwound bare copper wire

Jacket special pvc matte charcoal-gray and round

Printing "Georg Neumann GmbH Berlin - Made in Germany"

Overall diameter: 5.0 mm

Technical Data

Conductor resistance: < 96 Ohms/km

Insulation resistance: > 20 MOhms x km

Capacitance core/core: 135 nF/km (1 kHz)

Test voltage core/core: 1.2 kV

Test voltage core/shield: 0.6 kV

Temperature range: - 20° C to + 70° C

Specifications

General Specs

MPNK 3 x 0.2
Manufacture Part NumberK 3 x 0.2

Dimensions

Diameter:5.0 mm

Sennheiser K 3 x 0.2 Cable Material

Model #K 3 x 0.2
Our cable material has been developed by Neumann and is exclusively produced for Neumann by highly qualified manufacturers. All microphone cables have a counter wound double helix copper shielding, assuring a particularly high degree of coverage (95%). HF rejection is exceptionally good, flexibility of the cable excellent.
