Product Overview

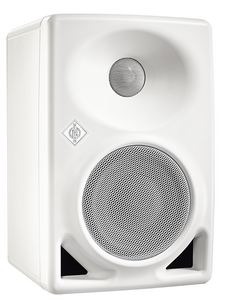

The KH 80 DSP two-way active bi-amplified monitor features a DSP engine with network control, a Mathematically Modeled Dispersion™ Waveguide (MMD™), an analogue input and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 80 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.
The KH 80 DSP is designed for use as a near-field monitor, as a front loudspeaker in small multi-channel systems, or as a rear loudspeaker in a compact multi-channel systems. It can be used in project and music studios, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering. It is also well suited for use in domestic environments.
New in-house simulated drivers with metal grilles
Powerful alloy fabric tweeter dome
Elliptical Mathematically Modeled Dispersion™ (MMD™) waveguide, with wide horizontal and narrow vertical dispersion
Long throw composite sandwich cone bass driver with Extremely Linear Force Factor™ (ELFF™)
Two-color + dimmable Neumann logo
Compact polycarbonate composite cabinet
Large front panel ports
One-piece front panel with no discontinuities
Powerful highly efficient amplifiers with large headroom
Independent thermo limiters for woofer and tweeter to protect the voice coils and power amplifiers.
Woofer soft clip and excursion limiters
Production consistency due to individual alignment in final test
4-position low-mid acoustical control
8 x Precision Alignment acoustical controls accessible via control network
Lipsync delay (0 … 70 ms)
Time-of-flight delay (0 … 70 ms)
Linear phase crossover, with bypass
Wide range input gain and output level controls
Control network used standard Ethernet components
Completely symmetrical internal signal chain
Double insulated electrical design
Universal switched-mode power supply (100 … 240 V)
Auto Standby mode
Extensive mounting hardware options
