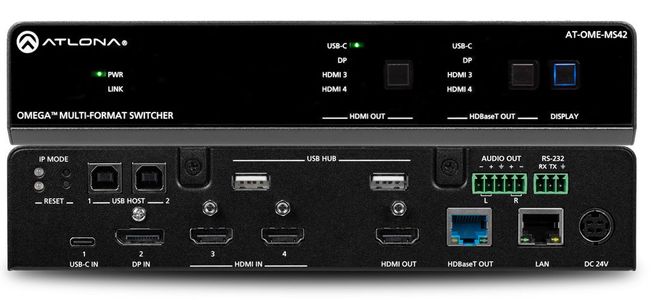

Atlona® 4×2 Matrix Switcher with USB

Product Overview

4×2 AV matrix switcher with HDMI, DisplayPort, and USB-C inputs

USB-C input for AV, data, and device charging

HDBaseT and HDMI outputs with selectable AV switching modes

USB 2.0 interfacing and extension up to 330 feet (100 meters)

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling on local ports (HDMI, DisplayPort, and USB-C)

Selectable 4K to 1080p downscaling

Ready for Zoom, Skype for Business, Microsoft Teams, Cisco Webex, BlueJeans, GoToMeeting, and more.

Enhance collaboration and productivity with your preferred UC platform.

Universal AV format compatibility.

Whether HDMI, DisplayPort, or USB-C the OME-MS42 has you covered.

Hands-free, zero UI operation.

Connect and forget – the OME-MS42 takes care of the rest.

Local and long distance outputs

Two outputs are included, one for a local HDMI display, and the other for extending video over HDBaseT up to 330 feet (100 meters) to a remote location. The outputs can be matrixed or mirrored.

Flexible HDBaseT receiver options

Choose the OME-EX-RX (part of the OME-MS42-KIT) with USB peripheral connectivity, or the OME-SR21 with USB hub, 4K up/downscaling, contact closure control, and more.

Remote or local powering available

The OME-MS42 can be remotely powered by the receiver, allowing easy installation below a meeting table. For standalone operation (and USB-C device charging), use the included power supply.

Integrated 4K to 1080p downconversion

The OME-MS42 supports 4K/60 4:2:0 via HDBaseT and 4K/60 4:4:4 over local I/O ports. 4K to 1080p downscaling is available over the HDMI output for an HD display or video conferencing codec.
