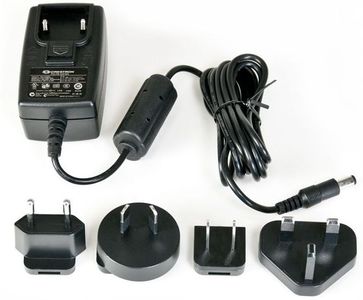

Crestron® PW-1909WU Wall Mount Power Pack

<p>Replacement power pack for the TSR-302-DS.<br /></p><p>The PW-1909WU is a universal regulated power pack intended for use with the Crestron&reg; TSR-302-DS Table Dock. It is designed to plug directly into an electrical outlet, and includes a universal blade kit to accommodate most outlet types.<br /></p><p><em>*The PW-1909WU is not available separately.</em><br /></p><p><strong>Output Rating</strong><br /></p><ul><li>19 Volts DC, 0.9 Amps, regulated</li></ul><p><strong>Power Requirements</strong></p><ul><li>Main Power: 0.4 Amps (maximum) @ 100-240 Volts AC, 50/60 Hz</li><li>Power Consumption: 0.3 Watts (maximum)</li></ul><p><strong>Connections</strong></p><ul><li>Line: (1) Ungrounded AC power plug, line power input; Type selectable via region-specific adapter inserts</li><li>Load: (1) 6 ft (1.83 m) attached cable with 1.7 x 4.0 mm DC power barrel connector</li></ul><p><strong>Environmental</strong><br /></p><ul><li>Temperature: 32&deg; to 104&deg; F (0&deg; to 40&deg; C)</li><li>Humidity: 10% to 90% RH (non-condensing)</li><li>Heat Dissipation: 1.03 BTU/hr</li><li>For indoor use only</li></ul><p><strong>Enclosure</strong></p><ul><li>Plastic, black, outlet-mountable</li></ul><p><strong>Weight</strong></p><ul><li>4.5 oz (126 g)</li></ul>
