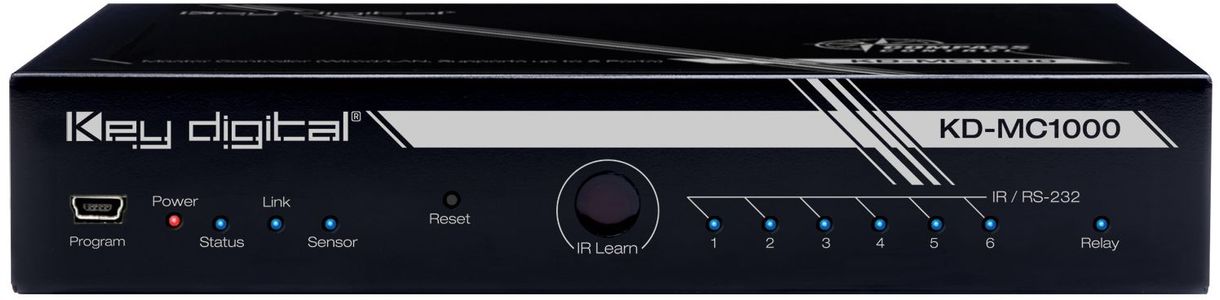

Key Digital® Master Controller

<p><strong>iOS Backbone</strong></p><ul><li>First major control system built from the ground up using Apple&rsquo;s iOS devices &ndash; iPad&reg;, iPad&reg; mini, iPhone&reg;, and iPod touch&reg;</li></ul><p><strong>Total 8 Ports</strong></p><ul><li>6 MCP35&trade; Multi-Function I/O Ports , 1 Relay/Contact Closure Port, 1 ZigBee Wireless Port</li><li>Multi-function 3.5mm Ports can be programmed to be one of the following functionality: IR in any direction, bi-directional RS-232, Voltage Level output, Voltage Sensor input, PCM Audio sensor input or Composite Video Sensor input</li></ul><p><strong>USB Support</strong></p><ul><li>USB port for firmware upgrades and initial setup</li></ul><p><strong>Built-In IR Learning</strong></p><ul><li>Front-facing IR window enables learning of IR codes from external IR remotes</li></ul><p><strong>LAN</strong></p><ul><li>Direct wire to LAN via RJ45</li></ul><p><strong>Relay Control</strong></p><ul><li>Control external equipment with one set of switchable contacts. Any multi-function 3.5mm port can be converted to Contact Closure using external Key Digital&reg; KD-CCXR200 Converter</li></ul><p><strong>Real Time Master Control</strong></p><ul><li>Allows user to store variables and events internally with/without iOS device</li></ul><p><strong>Compass Navigator&trade;</strong></p><ul><li>PC Editor allows fast and easy programming</li></ul><p><strong>Device Configuration</strong></p><ul><li>Allows all functions and integration into Compass Project via IP and Compass Navigator&trade; software</li></ul><p><strong>Complete Control</strong></p><ul><li>Audio, video, HVAC, lighting, shades, security, and more</li></ul><p><strong>Control Distribution</strong></p><ul><li>Integrates with all Key Digital Control Routing HDMI Switchers to expand the control system and add control ports</li></ul><p><strong>No Need for PC or Mac in the System</strong></p><ul><li>All system performance is controlled by<span>&nbsp; </span>KD-MC1000 Master Controller and any iOS device</li></ul><p><strong>Compass Alliance&trade; Partners</strong></p><ul><li>Pre-loaded code sets</li></ul><p><strong>Reliable iOS Integration Features</strong></p><ul><li>IP Connectivity Stabilizer: Stable and constant TCP/IP socket created by KD-MC1000 with IP target devices via Telnet or HTTP regardless or iOS devices status.</li><li>Event Handler: Scheduled events & actions based on iOS time and calendar variables including:</li><li>Schedule Mode: Schedule and execute timer events from iOS device and/or KD-MC1000</li><li>Schedule Sensing Mode: Execute events triggered by voltage or video/audio sensing by KD-MC1000</li></ul><p><strong>General Information</strong></p><ul><li>Regulation: CE, RoHS, WEEE</li><li>Enclosure: Black Metal 1/2U</li><li>Accessories: External 5V3A Power Supply, USB Cable, (1) 3-Pin Terminal Block for</li><li>Relay, (6) 3.5mm to IR Emitter, (3) 3.5mm to RS-232 Data Cable, Rack Mount Ears</li><li>Product Dimensions: 6.5&rdquo; x 4&rdquo; x 1.13&rdquo;</li><li>Shipping Dimensions: 8.8&rdquo; x 6.2&rdquo; x 3.9&rdquo;</li></ul>
