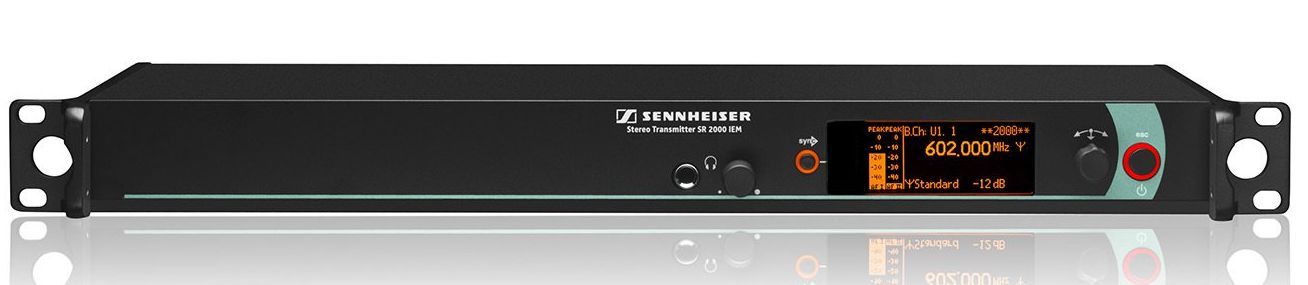

Robust 19"-rack transmitter for wireless monitoring. Up to 6 x 32 tunable channels. Switchable HF output power. Can be synchronized with the receiver using infrared interface. Read More
Rugged, reliable, and flexible - in short: professional. With SR 2000, you can choose from 26 frequency banks with up to 32 channels. The channels can be user-programmed six of the frequency banks. Three switchable RF output powers (10, 30, and 50 mW - additionally 100 mW in the US version) provide greatest artistic and technical freedom.
Rugged 19" all-metal housing with integrated power supply unit
Up to 3000 frequencies in up to 75 MHz switching bandwidth
20 fixed frequency banks with up to 32 compatible presets
6 banks each with up to 32 tunable channels
Frequency setting in 25 kHz steps
Switchable RF output power for versatile use
Enhanced audio frequency response in bass range
Receivers can be configured from the transmitter menu
Can be synchronized with the receiver using infrared interface
Wide range of accessories for virtually any use
Monitoring and control using Sennheiser WSM PC software
User-friendly menu interface with two-color backlit graphic display (red as a warning)
Pilot tone transmission for interference-free operation
Adjustable headphone connection
Wide range of accessories for virtually any use
1 SR 2000 IEM transmitter
3 mains cables (EU, UK, and US)
1 rod antenna
1 instruction manual
1 supplementary frequency sheet
1 supplementary RF license sheet
4 device feet
General Specs | |
| Product Weight (lbs.) | 5.73 |
General | |
| Dimensions | 436 x 215 x 43 mm |
| Compander | HDX |
| Audio-XLR connector | 2 x XLR, 2 x 6,5 mm Jack |
| Presets | max. 32 |
| Frequency response | 25 - 15000 Hz |
| Weight | 2600 g |
| Signal-to-noise ratio | > 90 dB(A) |
| RF frequency range | 516...865 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| In compliance with | CE, FCC, IC |
| Modulation | FM, MPX-stereo |
| Power supply | 100 - 240 V AC, 50/60 Hz |
| Carrier frequencies | max. 3000 |
| Antenna connector | 2 x BNC |
| Current consumption | 0,1 A |
| Headphone connector | > 100 mW (32 O) |
| Input voltage range | + 22 dBu max |
